Details

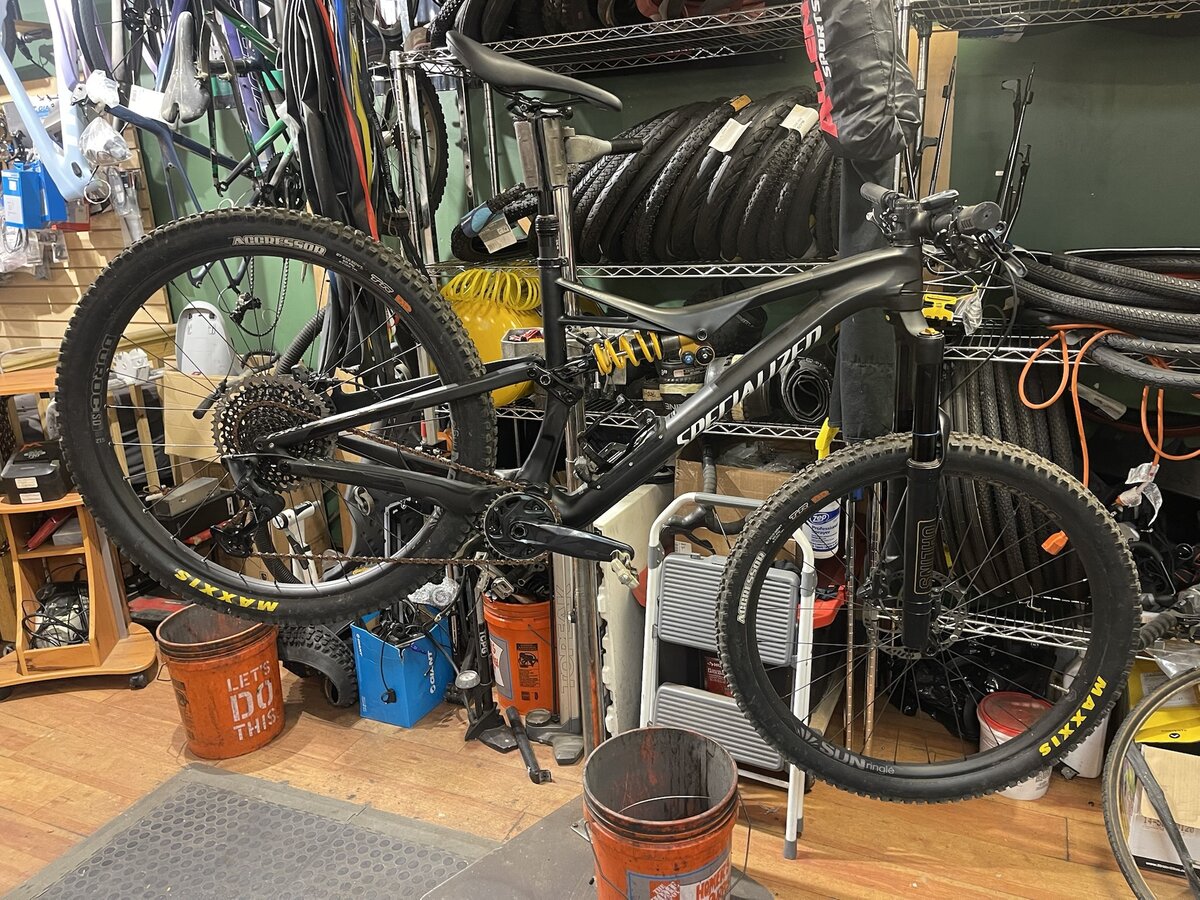

The days of coil suspension only appearing on the bikes of Enduro World Series pros, like Curtis Keene and Jared Graves, are over. Now, you too can experience the exceptional pedaling efficiency and downhill-crushing damping that comes with a coil shock. Starting at the carbon layup, it features Specialized's highest-end FACT 11m for an ultra-lightweight, strong, and stiff construction. The carbon molding process also allowed Specialized to revolutionize how you carry your trail essentials with the all-new SWAT Door found at the down tube. This compartment will fit a tube, a tool, and pump without rattling or compromising the structural integrity of the frame. You'll also find an aggressive, trail-eating geometry to complement the 27.5-inch wheels that features ridiculously short chainstays, a roomy top tube, a low bottom bracket, and a slacked out front end. Handling suspension duties out back is the revolutionary Öhlins twin tube coil shock, making for the perfect combination of pedaling efficiency and downhill-smashing damping that will have you going faster both up and down the trail. And to make things even better, the Stumpy's design also allows you the opportunity to toggle between 27.5" (included), 29" and 6Fattie wheels, allowing the ultimate in configuration options for the trail at hand. Outfitted with SRAM's simple GX Eagle 1x shifting, Shimano brakes, Öhlins front and rear suspension, and bomb-proof Sun Ringle Duroc wheels - FACT 11m carbon fiber Trail Chassis with Stumpjumper FSR full carbon rear end blends stiffness with light weight to form the pinnacle of efficiency, while fully enclosed cable routing and an integrated SWAT™ Door create exceptional handling and zero-hassle storage. Featuring a three-chamber air spring, the Öhlins RXF 36 fork stays smooth and high in the travel without compromising bump absorption, traction, or stability. It also features low-speed and rebound adjustments, and sports 150mm of plush travel. SRAM's 12-speed GX Eagle groupset features a wide gear range that delivers climbing and descending efficiency in spades. On top of this, the one-by setup is notorious for being next to impossible to drop a chain with, plus it provides a significant weight savings in comparison to a standard two-by setup.
Specs
Frame | S-Works FACT 11m, full carbon chassis and rear end, 29/6Fattie Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm of travel |
---|---|
Fork | Öhlins RXF 36, 29/6Fattie, coil spring, adjustable high and low-speed compression, adjustable rebound, 15x110mm thru-axle, 51mm offset, 150mm of travel |
Rear Shock | Öhlins TTX22M, coil spring, 48x197mm |
Rims/Wheels | SUNringlé Düroc SD37 |
Hubs | SUNringlé SuperBubba Straight Pull, 15x110mm / 12x148mm |
Spokes | Wheelsmith DB14 Spokes/brass nipples |
Tires | Maxxis Aggressor, 27.5 x 2.5", TR, DoubleDown |
Crankset | SRAM Eagle GX, 32t |
Bottom Bracket | SRAM DUB PF30 |
Chain | SRAM XO Eagle, Brass, 12sp |
Front Derailleur | Specialized Integrated Guide |
Rear Derailleur | SRAM GX Eagle, 12sp, Lunar Grey |
Rear Cogs | SRAM GX Eagle 12sp, 10-50t, xD |
Shifters | SRAM GX Eagle, 12sp |
Handlebars | Specialized SWorks Carbon, 6deg sweep, No-Rise, 31.8mm |
Tape/Grips | Specialized Sip Grip, half-waffle |
Stem | Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise, 45mm |
Brake Levers | Shimano BL-M4100 |
Brakes | Shimano BR-MT410, 180mm F/R |
Pedals | CrankBrothers Candy |
Saddle | Specialized Bridge |
Seat Post | Command Post IRcc, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, 125mm |
Seat Binder | Alloy, 34.9mm |
Color(s) | Black Carbon |
Sizes | Medium |
* Subject to change without notice.
